Modular Hardwall Cleanroom

Hardwall clean room can be divided into 2 kinds, acrylic or sandwich panel walls. The hardwall clean room is free of external support or suspension. The structure is solid and can stand independently and freely. Positive pressure in the clean room can be stably kept. The product can be applied to clean room of Class 100 to Class 100,000.

Features

1.Structure: The frame of hard wall clean booth has two selections: SUS stainless steel/aluminum alloy;
The SUS stainless steel can resist corrosion and has high structural strength; aluminium alloy structure leads to easy assembly, standard accessories and good airtightness;
2.Ceiling: Aluminium-plastic panel is light in weight, easy to install

3.Wall: Transparent acrylic sheet is high in strength and low in price. The anti-static acrylic sheet may lead the surface static electricity to the underground to keep the surface from absorbing dust or fiber. It is applicable to modular clean room that requires high demand for cleanliness and static. Sandwich panels are solid, durable and dust-free, able to last for decades.

4.FFU: Excellent energy-saving draught fan will be adopted, whose noise and energy consumption are on the low side. Meanwhile, the draught fan can be designated by customers, such as EBM of Germany. The casing is made of aluminized and galvanized plate, stainless steel or aluminum steel.
5.Control system: The control system has been developed by AIRKEY on its own. FFU is controlled in group or is under centralized control of PLC. It can regulate the wind speed, differential pressure, temperature and humidity of FFU (applicable to system with air conditioner).

Prev Send inquiry Next

Product introduction
Technical parameters

Modular clean room

A highly clean controlled environment centered on FFU (Fan Filter Unit); It is a good option to create a cleaner space within an existing normal room or a room with low-level of cleanliness. MCR can be a small as several square meters and as big as several hundred square meters.

Advantages of modular clean room：
Flexibility: modular rooms can be assembled, disassembled and relocated and can also reconfigured or upgraded as cleanliness or other requirements change;
Inexpensive and faster: a modular cleanroom can be produced and installed in a shorter time with less costs compared to conventional clean room.
Free-standing structure: no need internal bracing or ceiling supports, totally free-standing

Characteristics

Easy Upgrading

Low Cost

Easy Installation

Customized Design

Modular Design

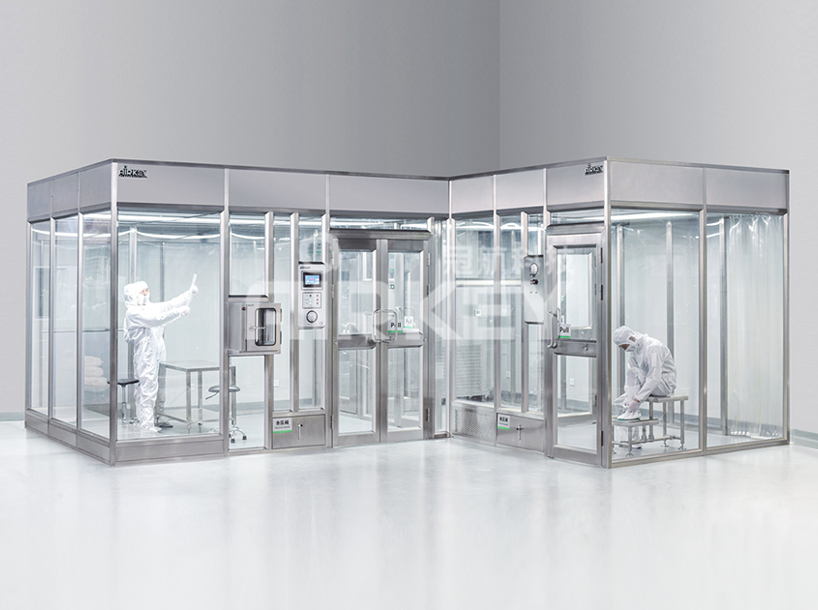

Hardwall Modular Cleanroom

Product Show Case

Item		Hard wall modular clean room
Cleanliness		Class 100 to Class 100,000
Boundary dimensionLXWXH		Designed as per customer’s requirements
FFU	Dimension	2X2, 2X4, 4X4 optional
	Structural material	Stainless steel, aluminum alloy, Al-Zn plate
	Power supply	110V/60HZ/AC/DC、220V/60HZ/AC/DC
Filter		Mini pleat HEPA filter/ULPA filter optional
Material of frame		Aluminum alloy / stainless steel 201/SUS 304
Material of wall		Acrylic / Sanwich panel / Anti-static acrylic 106～109Ω
Ceiling		Aluminium-plastic panel
